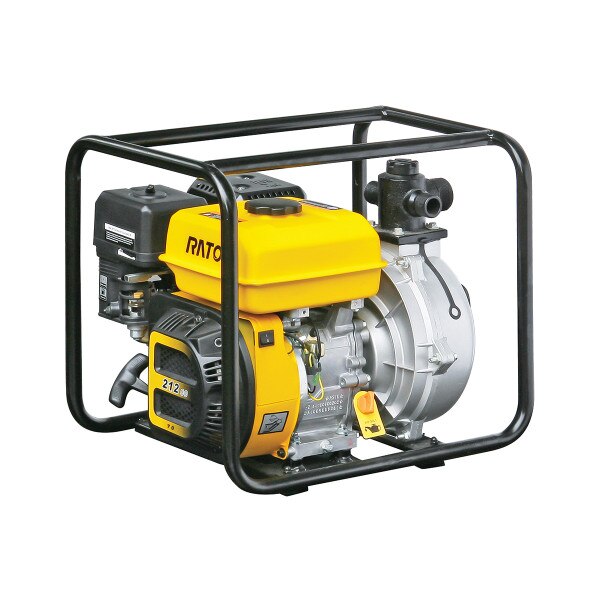

RATO 2" High Pressure Pump - Twin Impeller

SKU: RT50YB80-3.8Q

Details

The RATO RT50YB80-3.8Q 7hp high pressure pump is ideal for irrigation, fire security, Noh pools, orchard water supply, house cleaning and long distance and high pressure water supply. Has a rugged full frame for protection. All RATO products are covered by our 12 month/500 hour warranty. Features: Transistorised ignition for reliable starting; Cast iron cylinder liner ensures consistent performance and durability; Rugged full frame protection; Powerful 7hp RATO engine

Details

Engine model: R210 / 7hp
Engine type: Single cylinder 4 stroke OHV
Starting system: Recoil start
Bore x stroke: 70 x 55mm
Displacement: 212ml
Compression ratio: 9:1
Net power: 4.4kw / 3600rpm
Fuel consumption: ≤395 (g/kw-h)
Net torque: 12N.m / 2500rpm
Pump set; 2" high lift pump
Suction port diameter: 50mm (2")
Discharge port diameter: 1.5” / 1” / 1”
Suction head lift: 7m
Total head lift: 80m
Discharge capacity: 16m3/h / 266 litres per minute
Dimensions (L x W x H mm) 500 x 395 x 446
Net weight: 29.5kg
