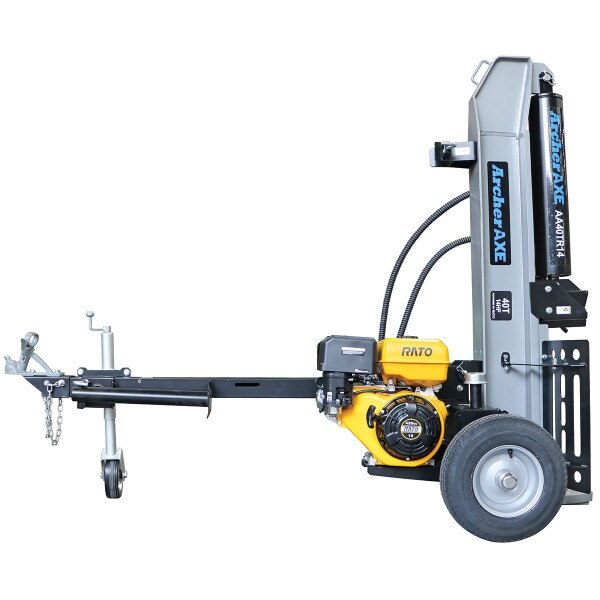

Archer Axe - 40 Ton Log Splitter with 15hp RATO Engine
SKU: AA40TR15
Details
Details
Archer Axe - 40 ton vertical/horizontal log splitter fitted with a RATO R420 15hp engine.
Maximum splitting force | 40 Tons1 |
Engine | 15hp, 420cc RATO R4202 |
Maximum log length | 25” (635mm) |
Cycle time, down & back | 15.8 seconds1 |
Cylinder | 5” dia x 24” stroke |
Pump, two stage | 19 GPM |
Wedge, heat treated steel | 9” high |
Beam | 9” foot plate |
Hydraulic capacity | 22 litres max.3 |
Shipping weight | 285kg |
Valve | Auto return with adjustable detent |
Wheels | D.O.T. approved 16” O.D road tyres |
Coupler | 2” ball with safety chains |
Warranty | 1 Year, limited |
1 Tonnage and cycle times may vary dependent on mechanical and environmental conditions.
2 As rated by engine manufacturer
3 Minimum operational capacity is 19 litres of hydraulic fluid
