2″ Clean Water Pump

Product details

Description

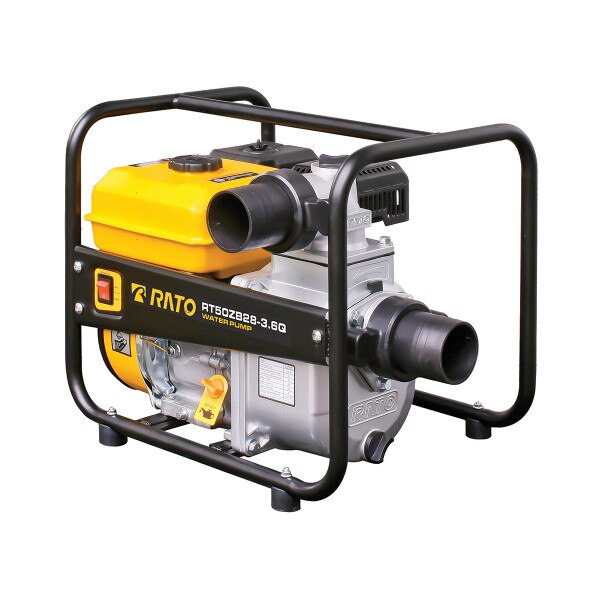

The RATO RT50ZB28-3.6Q clean water pump (2” standard transfer pump) features a unique design and is manufactured for general water pumping applications with high delivery rates. Features a tough aluminium housing and corrosion resistant e-coated rugged full frame with anti-vibration mounts.
Features: OHV 7hp engine technology by RATO; Cast iron volute and impeller with a silicon carbide seal; Complete accessories available; Scroll case is located by positioning pin for more reliable use; Anti-winding ring, so clear water pump has the function of dust water pump; Separated shock pad design for the support base, to minimize shock.
Covered by our 2 year/500 hour domestic warranty.

Measurements

Engine model: R210 / 7hp
Engine type: Single cylinder 4 stroke OHV
Starting system: Recoil start
Bore x stroke: 70 x 55mm
Displacement: 212ml
Compression ratio: 9:1
Net power: 4.4kw / 3600rpm
Fuel consumption: ≤395 (g/kw-h)
Net torque 12N.m / 2500rpm
Pump set: 2" clean pump
Suction port diameter: 50mm (2")
Discharge port diameter 50mm (2")
Suction head lift: 8m
Total head lift: 28m
Discharge capacity: 36m3/h / 600 litres per minute
Dimensions (L x W x H mm) 477 x 395 x 410
Net weight: 23.5kg
