2" High Pressure Pump - Single Impeller
SKU: RT50YB50-3.8Q
Details

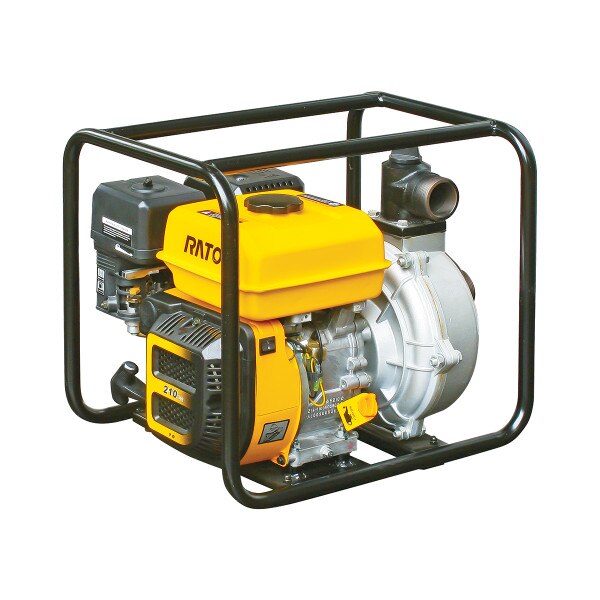

The RATO RT50YB50-3.8Q 7hp high pressure pump is perfect for all your pumping needs. It is ideal for irrigation, orchard water supplies, heavy duty cleaning, fire fighting and long distance, high pressure water supply. It features a rugged full frame for protection.
Covered by our 2 year/500 hour domestic warranty.Details
Engine model: R210 / 7hp
Engine type: Single cylinder 4 stroke OHV
Starting system: Recoil start
Bore x stroke: 70 x 55mm
Displacement: 212ml
Compression ratio: 9:1
Net power: 4.4kw / 3600rpm
Fuel consumption: ≤395 (g/kw-h)
Net torque: 12N.m / 2500rpm
Pump set: 2" high lift pump
Suction port diameter: 50mm (2")
Discharge port diameter: 1 x 1.5” / 2 x 1”
Suction head lift: 7m
Total head lift: 50m
Discharge capacity: 30m3/h / 500 litres per minute
Dimensions (L x W x H mm) 500 x 395 x 446
Net weight: 29.5kg
Engine type: Single cylinder 4 stroke OHV
Starting system: Recoil start
Bore x stroke: 70 x 55mm
Displacement: 212ml
Compression ratio: 9:1
Net power: 4.4kw / 3600rpm
Fuel consumption: ≤395 (g/kw-h)
Net torque: 12N.m / 2500rpm
Pump set: 2" high lift pump
Suction port diameter: 50mm (2")
Discharge port diameter: 1 x 1.5” / 2 x 1”
Suction head lift: 7m
Total head lift: 50m
Discharge capacity: 30m3/h / 500 litres per minute
Dimensions (L x W x H mm) 500 x 395 x 446
Net weight: 29.5kg
