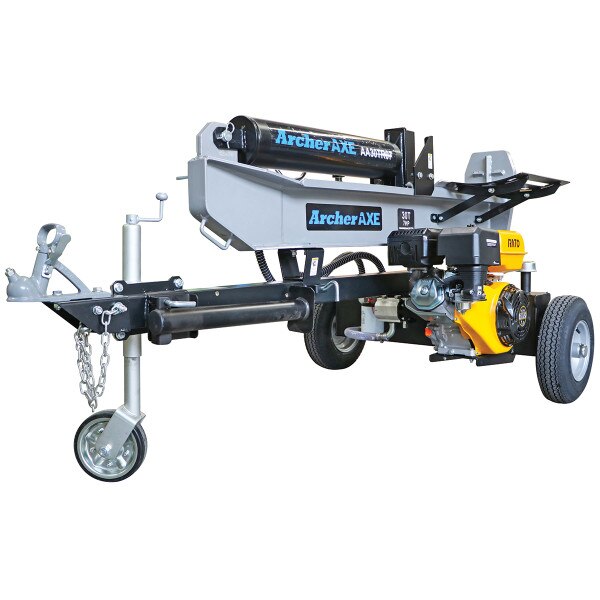

Archer Axe – 30 Ton Log Splitter with 7hp RATO Engine

Maximum splitting force

30 Tons¹

Engine

7hp, 212cc RATO R210²

Maximum log length

25” (635mm)

Cycle time, down & back

12.2 seconds¹

Cylinder

4-1/2” dia x 24” stroke

Pump, two stage

15 GPM

Wedge, heat treated steel

9” high

Beam

9” foot plate

Hydraulic capacity

22 litres max.³

Shipping weight

240kg

Valve

Auto return with adjustable detent

Wheels

D.O.T. approved 16” O.D road tyres

Coupler

2” ball with safety chains

Warranty

1 Year, limited
